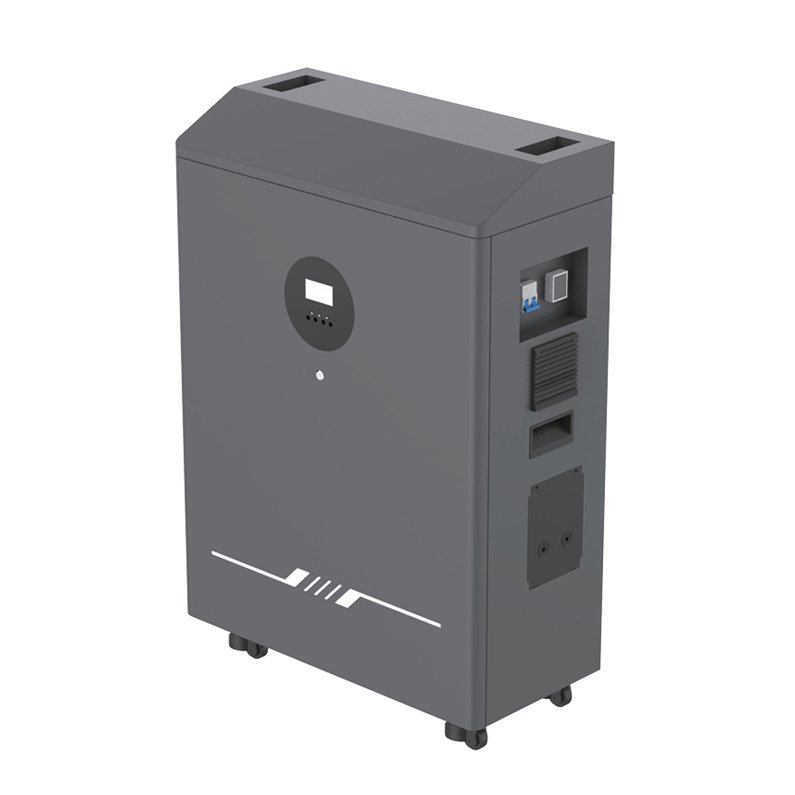

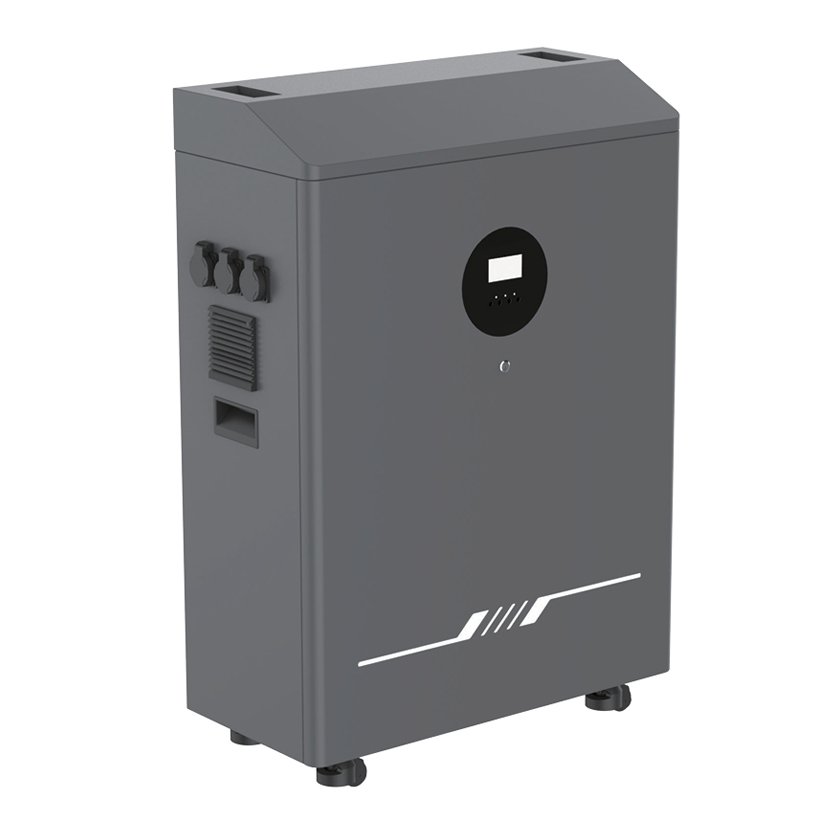

FSO-YD15KW

Model: HS-YD15KW
Rated Voltage: 51.2V
Rated Capacity: 280Ah
Rated Energy: 14336Wh
Voltage Range: 44.8-56V
Charge Voltage Range: 56-57.6V
Cut-off Voltage: 44.8V
Recommend Charge Current: 50A
Max Charge Current: 100A
Max Discharge Current: 100A
Ouput Peak power: Max 6000W peak
Battery Type: LiFePO4 280Ah*16PCS 16S1P
AC Input: 2500W(Parameters can be set)
MPPT PV Input: 120-500V 5500W Max
AC output: AC 230V 1500W*3 Pure sine wave
Indicator: LCD screen to show AC volt, power percentage,Frenquency Hz.
Shell material: Metal
Product weight: ≈120.2kg
Dimension: L695*W330*H940mm(Height including base)
Color: Dark gray
