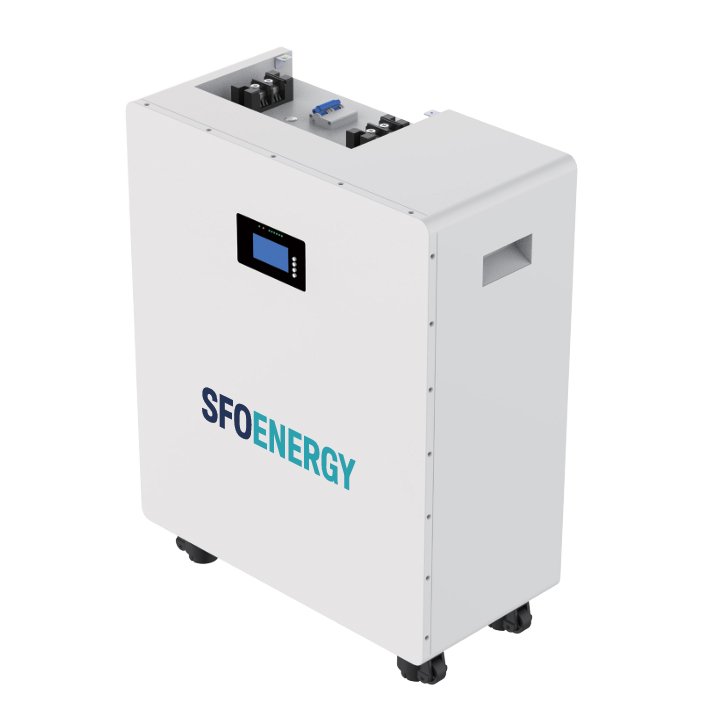

FSO-LD20KW

Rated Voltage: 51.2V
Rated Capacity: 400Ah
Rated Energy: 20480Wh
Voltage Range: 44.8-56V
Charge Voltage Range: 56-57.6V
Cut-off Voltage: 44.8V
Recommend Charge Current: 100A
Max Charge Current: 200A
Max Discharge Current: 200A
DimensionL*W*H: 600*300*702(Without base)
Weight: ≈165kg
Communication Port: RS485、CAN
Display: LED+LCD

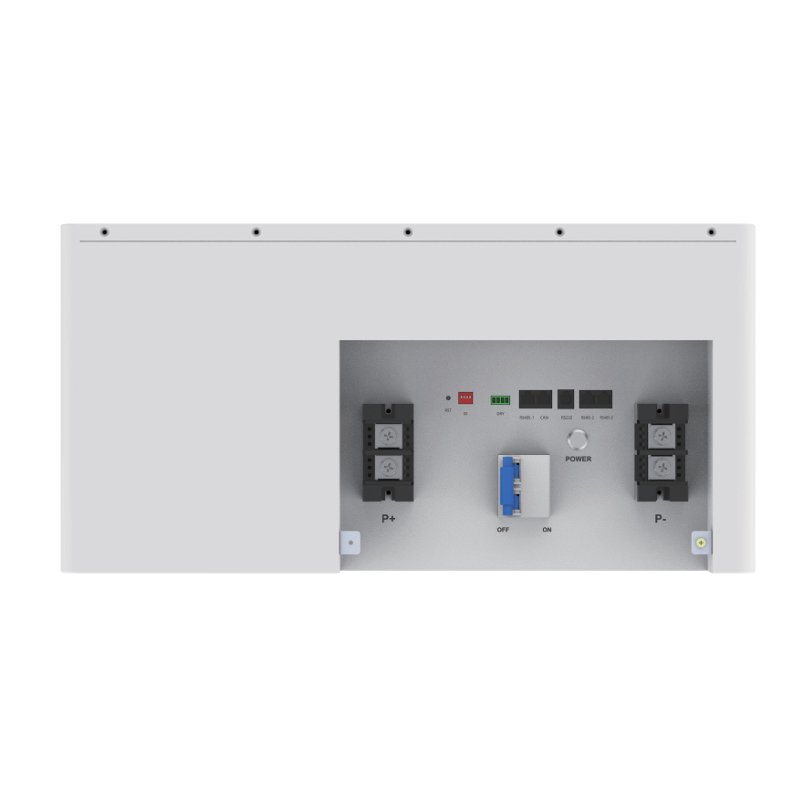

Terminal: M8
Cycle Life: ＞6000 (0.5C@ 25℃，80% DOD)

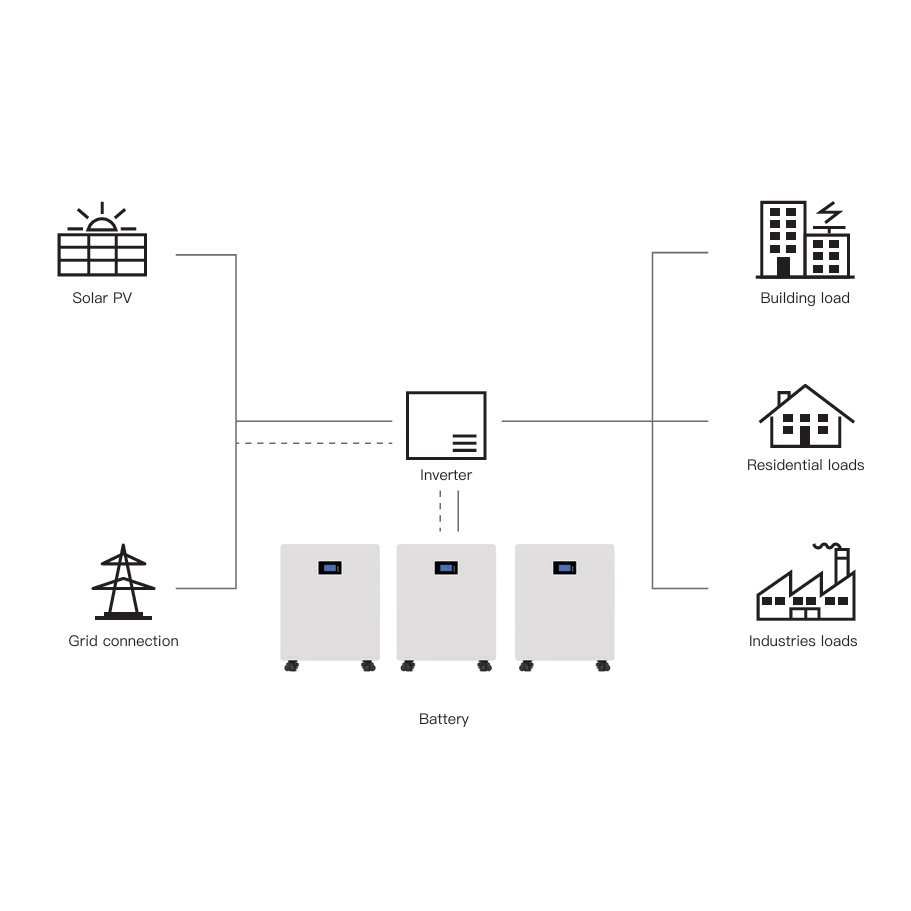

Compatible inverter: Growatt, Goodwe, Sol-Ark, SRNE,DEYE
Certificate: CE,FCC,RoHs,MSDS,UN38.3
